HAM 可变形碳纤维二维标定框架

可变形碳纤维二维标定框架，是为奥运会和全运会备战科技服务研发的、用于体育技术动作录像二维解析系统的空间校准。

本设备是便携式二维标定框架的第三代产品。聘请了航天科工专家协助研发。

产品特点：

1，标定面积大，标准型号尺寸3x3米。（可定制特殊规格）

2，标定区域可调节。

3，便携：拆卸收纳后，整体体积很小

4，碳纤维材质为主，重量轻

技术参数：

型   号：TS 2D-300

标定球数：3个

标 定 球：38mm

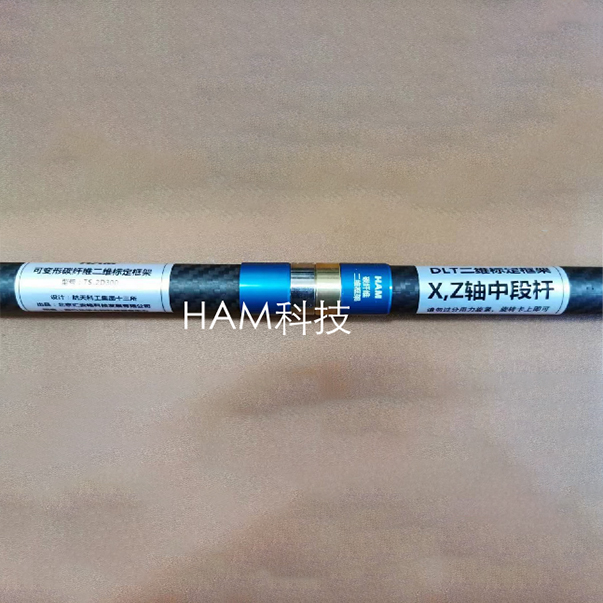

由6根碳纤维杆组装而成。

zui大标定面积3x3米。

净重：2KG

服务邮箱: hmayzz@126.com   服务微信：simisimisimi

HAM deformable 2D calibration frame

The 3rd generation deformable carbon fiber 2D calibration frame is a spatial calibration system for the 2D analysis system of sports technical action video developed for the science and technology service of the Olympic Games and the National Games.

Patent number: ZL 2022 2 3464701.X

Product features:

1, large calibration area, standard model size 3x3 meters. (Special specifications can be customized)

2, the calibration area can be adjusted.

3, portable: After disassembly and storage, the overall volume is small

4, light weight

Technical parameters:

Type number: TS 2D-300

Number of calibration balls: 3

Standard ball: 38mm

It's built from six carbon fiber rods.

The maximum calibrated area is 3x3 meters.

Net weight: 2KG
