HAM 碳纤维三维框架（空间校准架）

三维框架别名：三维标定架，空间校准架，三维比例尺

三维框架是视频动作捕捉系统必备的空间校准设备，

三维框架的重量和成品体积大小是一对矛盾关系，目前第六代碳素三维框架，在大幅度增加校准空间体积的同时，大大降低了产品重量。是一次重大的升级。

三维框架的生产研发始于2003年，研发人拥有多项实用新型专利。委托军工单位生产，采用了德国德玛吉五轴机床加工连接体，国产CNC加工中心和数控车床加工其他零部件。

三维激光校准标定数据，标定点云精度0.3-0.6毫米。

产品不断优化升级，在体育科研领域拥有较高的知名度。

在服务国内体育科研市场的同时，产品还出口欧美为国外动作捕捉系统厂家OEM配套。

专利号：  ZL2007 2 0154429.1    ZL2007 2 0154430.4

ZL2008 3 0008309.0    ZL2022 2 3464623.3

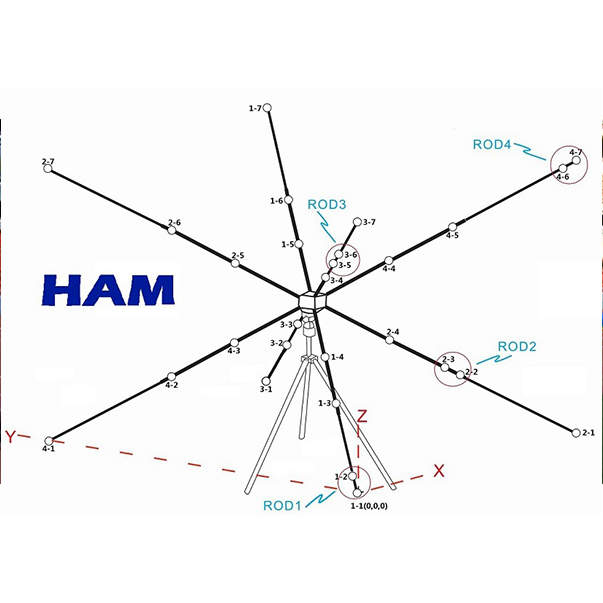

型号：TS-28     形状：辐射式      主体材质：碳纤维     连接部分材质：铝合金+不锈钢

尺寸：大于 2.3x2.3x1.7米     净重：小于7.8公斤(含手提箱)      手提箱材质：工程塑料

测量点球体空心注塑成形，净重8克。箱内海绵支架耗费3套模具制成。

服务Q Q：100226775

服务邮箱：hamyzz@126.com

服务微信：simisimisimi

HAM Carbon fiber 3D frame (Space calibration frame)

3D frame alias: 3D calibration frame, space calibration frame, 3D scale

3D frame is the necessary spatial calibration equipment for video motion capture system.

The weight of the 3D frame and the volume of the finished product are a pair of contradictory relations, and the current is the sixth generation of carbon 3D frame, which greatly increases the volume of the calibration space and greatly reduces the weight of the product. It's a revolutionary product upgrade.

The production and development of the 3D frame began in 2003, and the developers have a number of utility model patents. Commissioned military unit production, the use of Germany de Marge five machine tools and CNC machining center processing parts.

Products are constantly upgraded and improved. Has a high reputation, while exporting to Europe for foreign well-known motion capture manufacturers supporting.

3D frame is the necessary space calibration equipment for video motion capture system. The weight of 3D frame and the volume of finished product are a pair of contradictory relations.

The sixth generation carbon 3D frame greatly reduces the weight of the product while greatly increasing the calibration space volume. It's a revolutionary product upgrade.

Model: TS-28

Shape: Radiant

material: Carbon fiber

connection Material: Aluminum alloy +stainless steel

Size: more than 2.3x2.3x1.7m

Net weight: less than 8kg (including suitcase)

Suitcase material: engineering plastic
