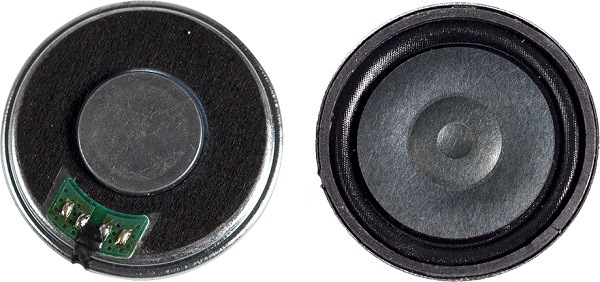

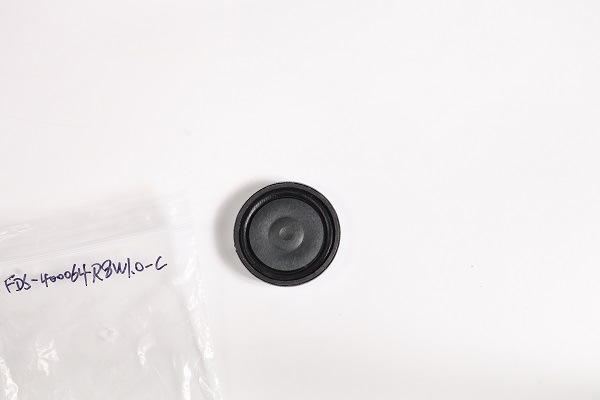

产品名称：FDS-400064R8W1.0-C
尺寸：40mm
额定功率：1.0 W
阻抗：8±15% Ω
重量：18.2 g ± 0.1g
共振频率：300KHz
灵敏度/声压：92± 3dB
买家须知：
1.所标价格为参考价，为节省时间，将同类产品同一标题列出，但价格并非统一，拍下前请联系卖家。（注：店内产品均不含税，可开普票，开票需加税金）。另有大量库存没有上传，如果您还没有查到您想要的型号，请与我们联系，我们可以为您研发制作偏冷门的电子元件！
2.电子元件是专业型的产品，技术含量较高，由于本身可能存在着多种品牌，后辍与封装，所以可能导致参数与性能的差异，有不慎，很有可能导致元件购买错误(此种失误，非质量问题一律不退换！)，为了更好的解决您的问题，请您在购买我们元件前，将您所需产品的品牌、封装、脚位及后缀告诉我们！以便我们能准确迅速的发货。为了保障您的利益，切勿直接拍下并付款！！！
3.为避免运输过程中造成货物损坏或丢失给您带来损失，请您在收到货物时认真检查，如有问题请勿签收！时间与我取得联系，共同解决问题。勿在签收后提出数量不足，货不对板的情况，谢谢合作！
|
01 |
Type |
Dynamic speaker |
|
|
02 |
Dimension |
External diameter40 mm |
|
|
03 |
Rated Input Power |
1.0 W |
|
|
04 |
Impedance |
8 ohm±15% at 2KHz |
|
|
05 |
Resonance Frequency (Fo) |
300K Hz±20% at Fo, 1V |
|
|
06 |
Sensitivity (S.P.L.) |
92dB(0.5W/0.1m)±3 dB |
at AVE 0.8K,1.0K,1.2K,1.5K(Hz). |
|
07 |
Frequency Range |
Fo–10KHz |
|
|
08 |
Distortion |
Less than 10 % at 2000Hz1.0W |
|
|
09 |
Max. Input Power |
Must be normal at 1.5W white noise for 1 minute. |
|
|
10 |
Voice Coil |
Diameter14.4 mm |
|
|
11 |
Magnet |
Rare earth permanent (Nd-Fe-B) magnetΦ13.5 x 1.5mm |
|
|
12 |
Weight |
8.2g±0.1g |
|
|
13 |
Appearance |
Should not exist any obstacle to be harmful to normal operation; damages, cracks, rusts and distortions, etc. |
|
|
14 |
Operation Test |
Must be normal at program source 1.0W |
|
|
15 |
Buzz, Rattle, etc. |
Should not be audible at2.83V sine Wave between Fo to 10KHz |
|
|
16 |
Polarity |
When positive voltage is applied to the terminal marked (+), diaphragm should move to the front. |
|
|
17 |
Terminal Strength |
Capable of withstand 1kg load for 30 seconds without resulting in any damage or rejection. |
|
|
18 |
Load Test |
1.0W white noise is applied for 96 hours and satisfy the test listed on item 05,06,13,15 |
|
|
19 |
High Temp. Test |
Keep 96 hours at +70℃±3℃ and leave 3 hours in normal temperature and then check |
|
|
20 |
Low Temp. Test |
Keep 96 hours at -20℃±3℃ and leave 3 hours in normal temperature and then check |
|
|
21 |
Humidity Test |
Keep 96 hours at + 60℃±3℃ relative humidity 95% and leave 3 hours in normal temperature and then checked. |
|
|
22 |
Drop Test |
Drop the speakers contained in normal box onto the board 20mm thick 10 times from the height of 0.75m and then should satisfy the test listed on item 13 and 15 |
|
P 3/4
|
Measurement Condition |
|||
|
Test and measurement will be carried out under normal condition of temperature within 5℃to 35℃,relative humidity within 45% to 85% and air pressure of 860mbar to 1060mbar. Should uncertainly arise in data obtained from the above atmosphere, control of temperature At 20℃±2℃ and relative humidity within 60% and 70%, with air pressure remaining unchanged, To be enforced.
1.Microphone : B&K 4191 2.Standard Baffle :In IEC 268-5 Where 1350mm x 1650mm 3.Testing Distance : 0.1m 4.Zero Level : -dB 5.Mode : SPEAKER 6.Input Power : 0.5W 7.potentiometer Range : 50dB 8.Sweep Time : 0.5sec
|
