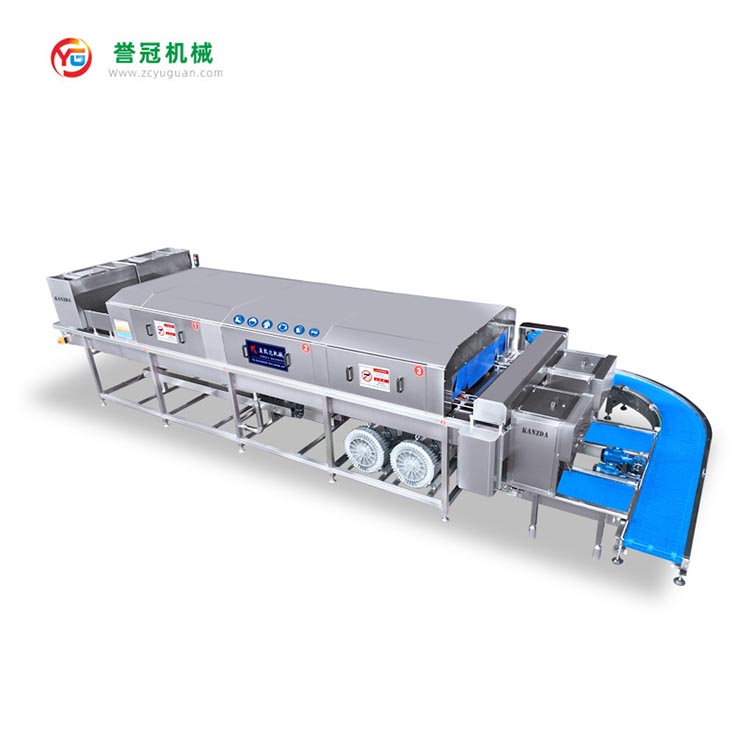

Yuguan's Egg tray washer is used in egg industry enterprises and egg farms. It is suitable for washing, sterilization, stacking and drying of a large batch of 30 egg trays. The products can be customized and processed according to egg trays. |
The washer which can quickly clean and process the egg tray, remove the dirt on the tray, and realize the sterilization of the tray through solution (chlorine solution, etc.), the whole machine only needs one person to operate, which can save Labor. At the same time, the cleaning water is recycled, saving water.
In the daily life cycle, the egg tray becomes very dirty. The feather, egg skin and damaged egg liquid are all the objects to be cleaned on the egg tray, especially the egg liquid will become hard after drying, and the two contact trays are not easy to separate. Yuguan's Egg tray washer has a powerful automatic tray distribution system, which can divide the stacked Egg tray into each part for cleaning.
Standard features of the Kanzda tray washer are:
- Powerful driving force supply: BWM-ET70 Tray washer is equipped with 304 stainless steel pump with large flow, and the cleaning process reaches three levels, design the spray system according to the specifications of the egg tray, and spray the tray in all directions without dead corners.
- With the transmission system and guide rail which are completely consistent with the tray, the tray will not turn over even if it works for a long time.
- Equipped with two sets of water remover, 85% of the water on the tray can be removed, while the drying power is only 4.4Kw.
- Smart filtration system with extended screen surface, matched with the nozzle diameter, to prevent clogging.
- Extra brushes for dirty trays
- Siemens inverter control operation
- Omron photoelectric switch, accurate measurement.
- Water tank automatic heating system.
- Automatic disinfectant system.
- Kanzda produces different voltage washer
For example: 415V / 380V / 440V / 230V
1. Release tray (30 pieces): manually place piles of egg trays on the feeding part of the washer. Pay attention to the direction of the egg trays when placing them, and prompt will be given at the feeding end of the equipment.
2. Automatic splitting: the egg tray is split into a single one by itself and put materials to the conveying part by itself, and the conveying device drives it to move to the cleaning and processing station.
3. washing station 1: it is recommended to add cleaning agent into the water tank for the first-level cleaning station, and heating cleaning water is needed.
4. washing station 2: This station is mainly responsible for the dust removal of the egg tray and can add disinfectant into the water tank to remove the peculiar smell on the egg tray.
5. Clean water flushing: clean the surface of the egg tray again with a set of clean water (tap water). The water in this station is discharged directly and is optional. If you choose to open it according to the situation, you can turn off the watering.
6. Blower #1: a large amount of free water on the surface of the egg tray is removed by a large air volume fan.
7. Blower #2: remove water from the egg tray again to improve the drying degree.
8. Automatic Collection (30 pieces): The egg tray is piled by itself and transported to the main conveyor belt after reaching a certain amount.
9. Return: the processed egg tray will be sent back to the feeding end by the conveyor belt, and will be placed regularly by the operator.
BWM-ET70 the operation of the Tray washer is friendly, the operation panel is located on the right side of the feeding end so that it can be operated conveniently. The two channels of the Tray washer are controlled separately. If one line stops working, the other channel will continue to operate, which means production will be maintained.
Our washer have a food-grade cleaning machine. The material of the whole machine is 304 stainless steel. Of course, necessary components such as motor, water pump and fan need to be removed. This will conform to the food safety level and will have better safety. | |
SUS304 |
The spraying system adopts 304 stainless steel nozzle, and the direction of the nozzle in the key part can be adjusted to make it completely cover the whole tray without dead angle cleaning. |
The washer is equipped with two layers of filter devices for each group of cleaning, which can ensure the recycling of cleaning water to the greatest extent, and there is no need to replace the cleaning water in a short time. |
The Blower uses a quick water cutting device, which can remove a large amount of free water from the tray and meet the use requirements of most customers. If the tray needs to be completely dried, the machine needs to add a larger drying system additionally. The cost of drying is very high, which requires a lot of electricity consumption. |
SPECIFICATIONS
SIZE | L7000 x W3600 mm |
CAPACITY | 600-5000 trays/hour |
PUMP CAPACITY | 24-36m3/ hour @ 3.5-5bar |
VOLTAGE | 380V |
FREQUENCY | 50Hz |
POWER (WITHOUT HEATING) | 18.4Kw |
