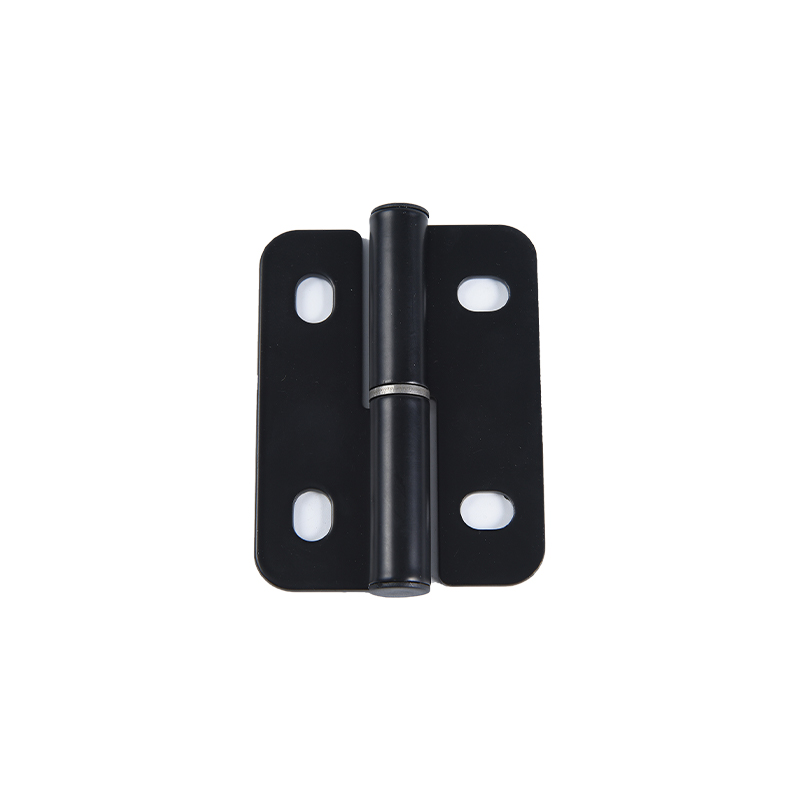

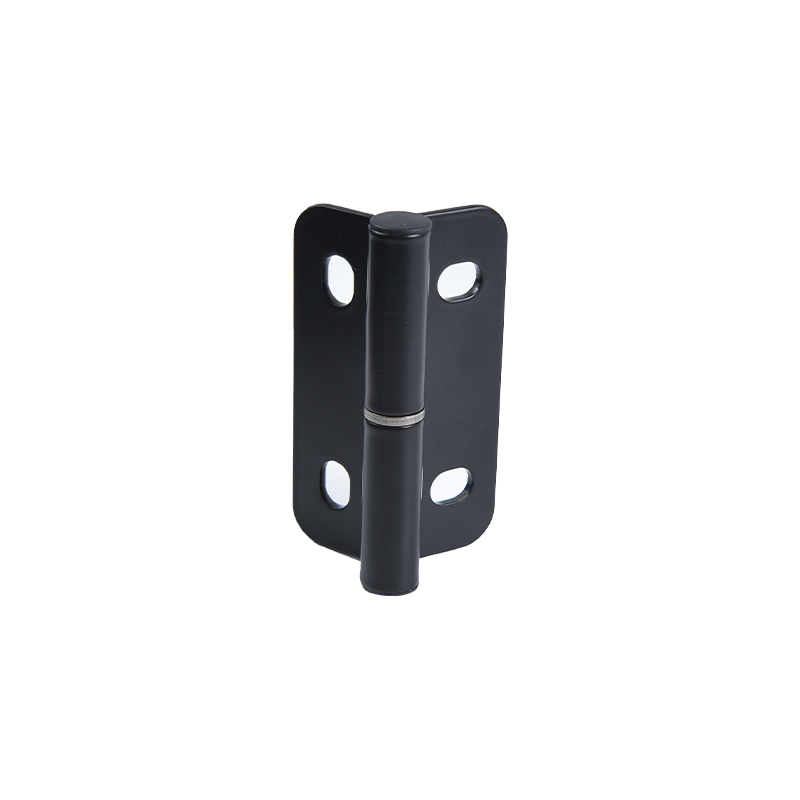

欧宝铰链 CL233-5D铰链 喷塑黑色铰链 拉丝抛光铰链
| 产品型号（MODEL) | 特征描述（SPECIFICATION) | 产品单重 weight（g) | 装箱数 Lot | |||
| CL233-5D | 不锈钢stainless steel | 265 | 80 | |||
CL233-5D
材质： 不锈钢铰链
表面处理：喷塑黑色或拉丝抛光
结构说明：脱卸式有左在区分，可开启角度180°
性能参数：最 大 静载荷
径向载荷: 1200N
轴向载荷: 1300N
Material: stainless steel hinge
Surface treatment: spray-painted black or brushed polished
Structural description: The detachable type has left and right distinction, and can be opened at an angle of 180 °
Performance parameters: maximum static load
Radial load: 1200N
Axial load: 1300N
.......................................................................................................................................................................................................................................................................................................................................................................................
.......................................................................................................................................................................................................................................................................................................................................................................................
