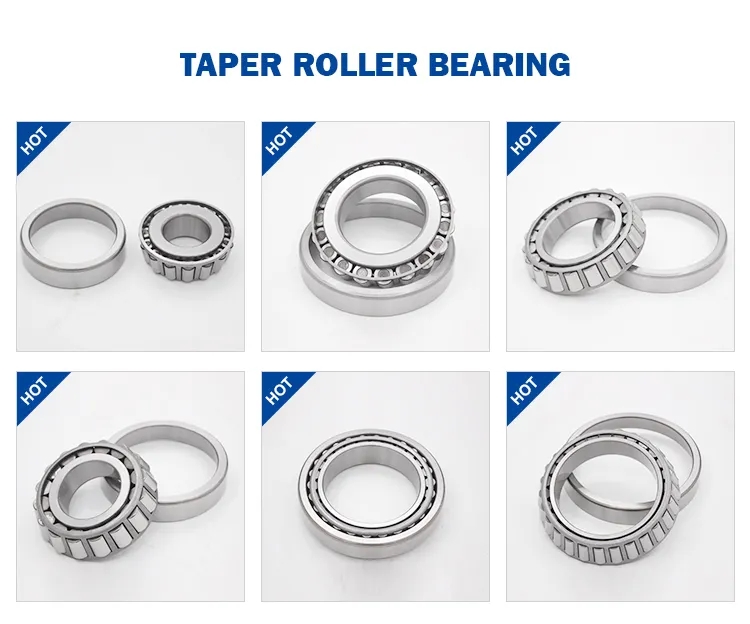

产品类型：英制圆锥滚子轴承
轴承型号: 15579X/15520
内径(d):25.987mm
外径(D):57.150mm
装配高度(T):17.463mm
内圈高度(B):17.462mm
外圈高度(C):13.495mm
重量:0.21KG
硬度:59-62HRC
保持器：压顶保持器
材质：轴承钢，GCR15
外观：精美，光亮，无划痕，无磕碰伤
包装：工业包装或单个彩盒包装
防锈：防锈质保二年
产品特点：高转速 寿命长 高精度 低噪音
临清市普菲轴承有限公司生产深沟球轴承和圆锥滚子轴承，英制圆锥滚子轴承，
产品全检。内套和外套可以互换使用，按您要求来做包装，如有需要，欢迎随时询价！
| 型号 | 外型尺寸 （d×D×B） | 重量（KG） |
| JP10049/10 | 100×145×24 | 1.17 |
| LM102949/10 | 45.242×73.431×19.558 | 0.303 |
| JLM104948/10 | 50×82×21.5 | 0.422 |
| JLM104946/10 | 50×82×21.5 | 0.435 |
| LM104949/11 | 50.8×82.55×21.59 | 0.42 |
| LM104949/12 | 50.8×82.931×21.59 | 0.426 |
| LM11749/10 | 17.462×39.878×13.843 | 0.0821 |
| LM11949/10 | 19.05×45.237×15.494 | 0.124 |
| M12649/10 | 21.43×50.005×17.526 | 0.173 |
| LM12748/11 | 21.43×46×15.494 | 0.118 |
| LM12748/10 | 21.43×45.237×15.494 | 0.118 |
| LM12749/10 | 22×45.237×15.494 | 0.115 |
| LM12749/11 | 22×46×15.494 | 0.12 |
| 13685/21 | 38.1×69.012×19.05 | 0.29 |
| 13686/20 | 38.1×69.012×26.195 | 0.356 |
| 13687/20 | 38.1×69.012×19.05 | 0.297 |
| 13687/21 | 38.1×69.012×19.05 | 0.293 |
| 14116/276 | 30.226×69.012×19.845 | 0.365 |
| 14123A/276 | 31.75×69.012×26.982 | 0.394 |
| 14124/276 | 31.75×69.012×19.845 | 0.354 |
| 14131/276 | 33.338×69.012×19.845 | 0.341 |
| 14585/14525 | 34.925×68.262×20.638 | 0.317 |
| 15101/245 | 25.400×62.000×19.050 | 0.287 |
| 15100/245 | 25.400×62.000×19.050 | 0.285 |
| 15112/15245 | 28.575×62×19.05 | 0.263 |
| 15113/245 | 28.575×62×19.05 | 0.266 |
| 15116/245 | 30.112×62×19.05 | 0.254 |
| 15117/245 | 29.987×62×19.05 | 0.256 |
| 15118/245 | 30.213×62×19.05 | 0.285 |
| 15120/250 | 30.213×63.5×20.638 | 0.254 |
| 15125/245 | 31.75×62×19.05 | 0.238 |
| 15126/245 | 31.75×62×19.05 | 0.242 |
| 15123/243 | 31.75×61.912×18.161 | 0.241 |
| 15123/245 | 31.75×61.912×18.161 | 0.241 |
| 15123S/245 | 31.75×62×18.161 | 0.243 |
| 15578/20 | 25.4×57.15×17.462 | 0.212 |
| 15579X/20 | 26×57.15×17.462 | 0.21 |
| 15580/20 | 26.988×57.15×17.462 | 0.201 |
| J15585/20 | 25.4×57.15×17.462 | 0.212 |
| 15590/20 | 28.575×57.15×17.462 | 0.191 |
| 16137/16282 | 34.925×72×19 | 0.36 |
| 16150/16282 | 38.1×72×19 | 0.33 |
| 16150/16284 | 38.1×72.238×20.638 | 0.353 |
| 1755/1729 | 22.225×56.896×19.368 | 0.258 |
| 1779/29 | 23.812×56.896×19.368 | 0.25 |
| 1780/29 | 25.4×56.896×19.368 | 0.24 |
| 17887/31 | 45.23×79.985×19.842 | 0.41 |
| 18590/20 | 41.275×73.025×16.667 | 0.28 |
| 1986/32 | 25.4×58.738×19.05 | 0.251 |
