带压开孔 高温液压开孔钻套装管道打孔钻头 先机XJZY

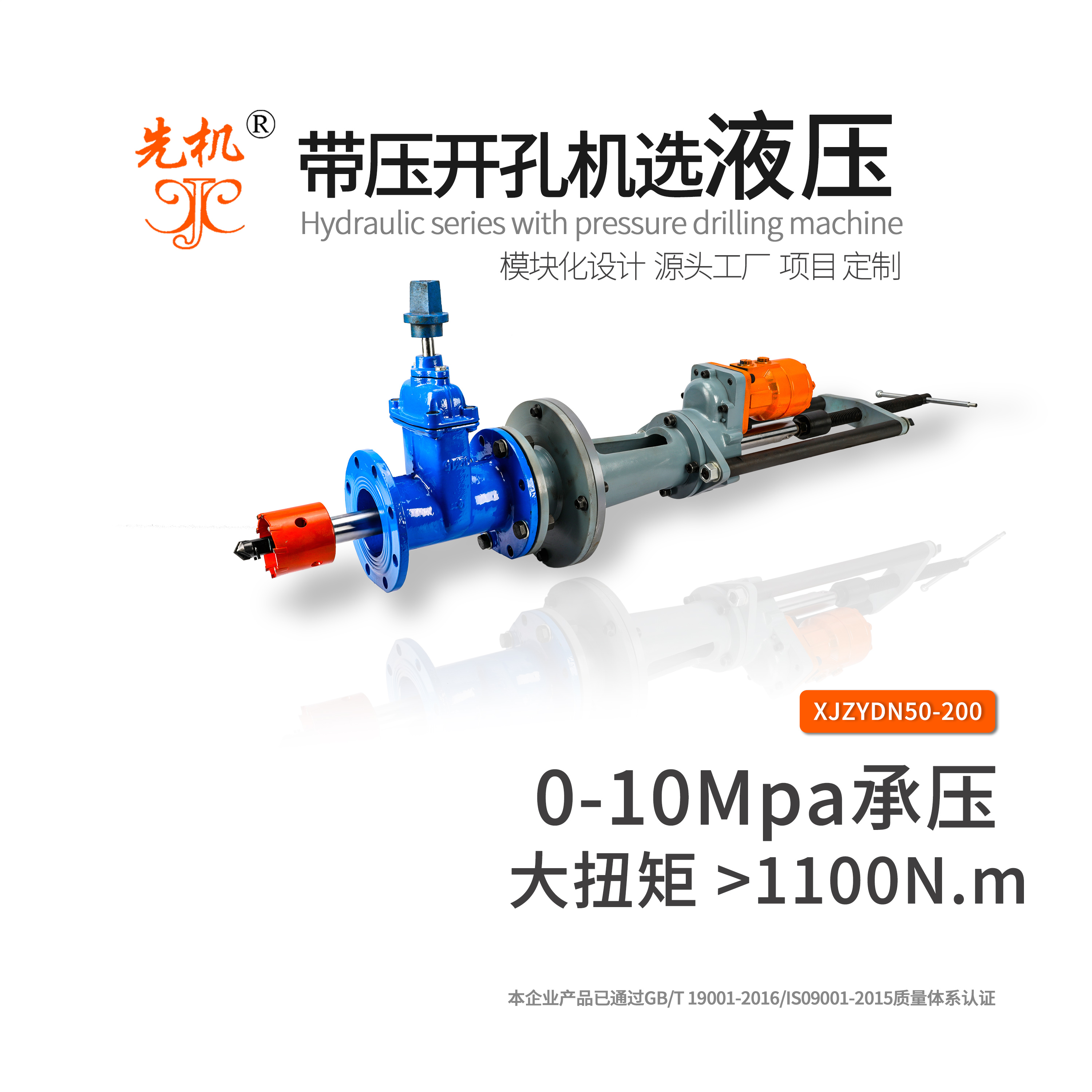

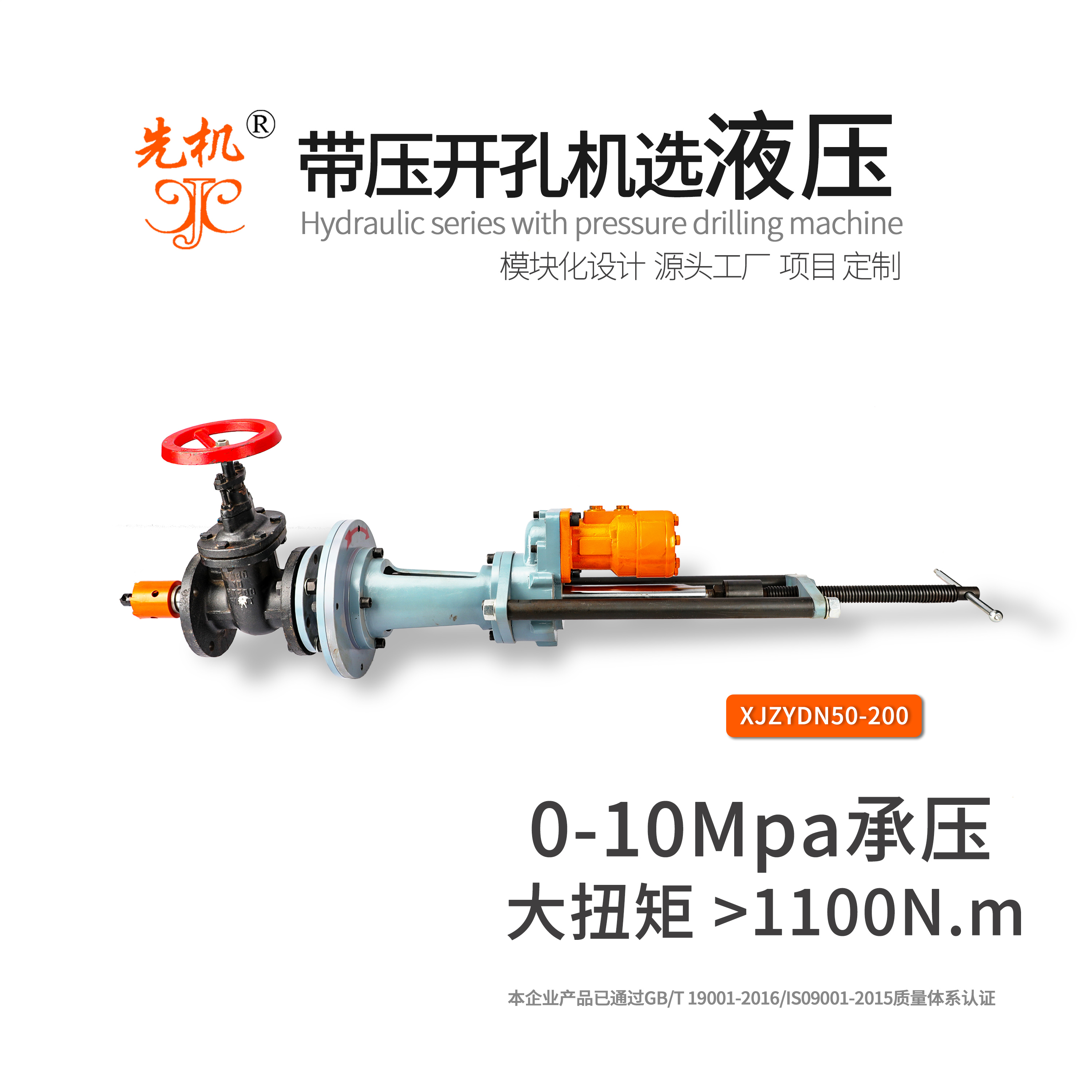

DN50-200 液压开孔机

• 开孔直径：DN50-200
• 进刀模式：手动 / 自动
• 开孔承压：≤4Mpa
• 法兰标准：ISO/API
• 钻杆行程：600-660mm
• 工作温度：≤160℃
• 整机高度：1200mm
• 整机重量：70Kg
• 刀齿材质 / 硬度：合金 / 65-93HRA
• 液压站压力 / 流量：10Mpa/25L/min
• 适配场景：中小口径（DN50-200）管道的灵活开孔，轻量机身便于小型工程作业

液压带压开孔机

自动液压开孔钻动力源为液压泵站，液压传动对 带水作业无触电隐患、带气带油作业无火花及电 磁干扰等爆炸风险，可实现自动进刀完成带压开 孔作业。

The power source for automatic hydraulic hot tapping is the hydraulic pump station. The hydraulic transmis sion has no electric shock hazard for operations with water, and there is no risk of explosion such as sparks and electromagnetic interference for operations with air and oil. It can achieve automatic cutting to complete pressurized drilling operations.

动力源也可直接利用工地上的挖掘机 、推土机等液压系统（在工作压力、流 量相符的情况下需定制）为动力源，安全简便。

The power source can also be directly used from hydraulic systems such as excavators and bulldozers on the construction site (customized when the working pressure and flow rate match), which is safe and convenient

液压开孔机技术要求

1.带压开孔机主要用于自来水、热力、冷却水、煤气、石油、化工等各种规格主管道的嫁接 分支管道作业。 The pressurized drilling machine is mainly used for grafting branch pipelines of various specifications of main pipelines such as tap water, heat, cooling water, gas, , chemical, etc.

2.适用的管道材质：PE、钢管、合金钢、铸铁、球墨管、水泥管、玻璃钢管、不锈钢管。管道开孔直径 范围：Φ50-Φ1400

Applicable pipeline materials: PE, steel pipe, alloy steel, cast iron, ductile iron pipe, cement pipe, fiberglass steel pipe, stainless steel pipe. Pipeline hot tapping diameter range: Φ 50- Φ 1400

3.液压开孔钻体(XJZY系列)：全系采用45#钢制材料，严禁使用铸造承压部件

Hydraulic drilling body (XJZY series): The entire series is made of 45 # steel material.

4.开孔钻进刀顶板是关键承压部件，厚度应安规范生产不低于25mm厚度的45号钢制材质，其 表面做镀锌或防锈处理。

The top plate of hot tapping drill feed is a key pressure-bearing component. Its thickness shall be 45 # steel with thickness no less than 25mm and its surface shall be galvanized or rust-proof.

5.开孔刀刀头（刀齿）材质：高速钢或硬质合金。刀齿尺寸应均匀一致，尺寸误差在（0.1-0.3）

Material of hot tapping cutter head (teeth): HSS or carbide. The cutter teeth size shall be uniform and the size error shall be within (0.1-0.3)

6.液压开孔钻体(XJZY系列)配套的液压泵站工作压力为10Mpa，流量为35L/Min

The hydraulic pump station equipped with the XJZY series hydraulic drilling body has a working pressure of 10Mpa and a flow rate of 35L/min

7.XJZY-DN(300-1400)整体重量为200-1300公斤范围，作业时应当使专用吊装设备进行辅助安 装作业，用以减小管道所受应力的影响。

The overall weight range of XJZY-DN (300-1400) is 200-1300 kilograms, and special lifting equipment should be used for auxiliary installation during operation to reduce the impact of stress on the pipeline.

8.液压马达排量、标准额定工作压力以及输出扭矩、转数等参数依据开孔钻所需动力不同而有所 改变。

The hydraulic motor displacement, standard rated working pressure, output torque, revolutions, and other parameters vary depending on the power required for hot tapping.

9.客户定制的刀具应当遵循设备标准进行改制和优化，对存在的疑点和技术要求应当与客户及时 反馈与沟通后再批量生产，以确保产品质量。

Customized pressurized punching machines by customers should be modified and optimized in accordance with equipment standards. Any doubts and technical require ments should be promptly reported and communicated with customers before mass production to ensure product quality. ensure product quality.
