CL233A碳钢铰链 上海欧宝铰链 工业柜门铰链 锌合金合页铰链厂商 欧宝铰链 CL233A铰链
| 产品型号（MODEL) | 特征描述（SPECIFICATION) | 产品单重 weight（g) | 装箱数 Lot | |||
| CL233A | 铁 Iron | 433 | 60 | |||

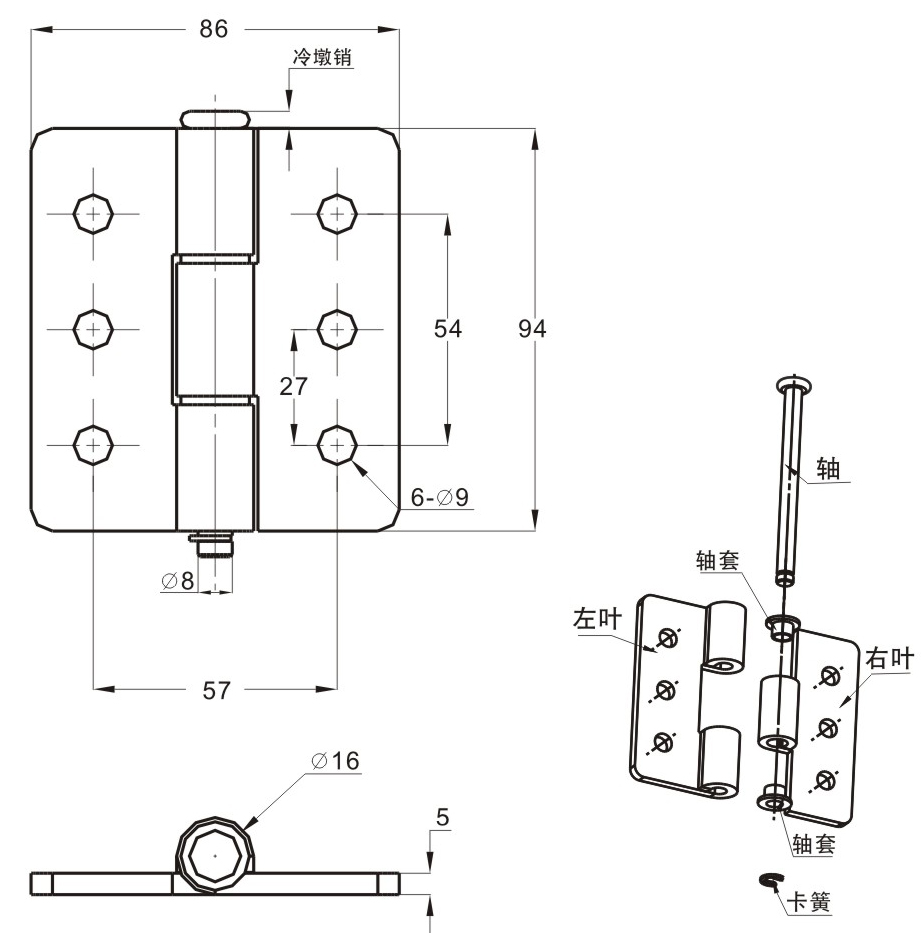

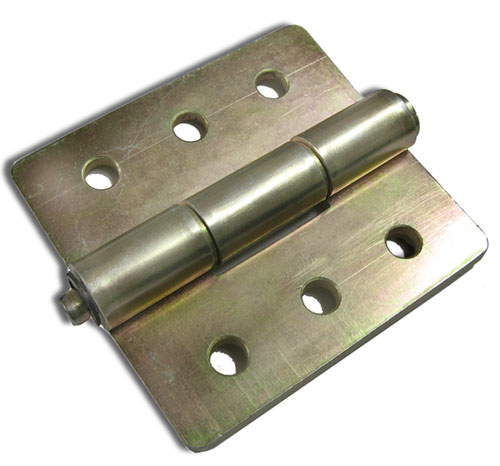

CL233A
材质：碳钢铰链
表面处理：镀彩锌
结构说明：可开启角度180°
性能参数：最 大 静载荷
径向载荷: 1100N
轴向载荷1200N
Material: carbon steel hinge.
Surface treatment: color galvanized.
Structure description: open angle 180 °.
Performance parameters: maximum static load.
Radial load: 1100N
Axial load:: 1200N
.......................................................................................................................................................................................................................................................................................................................................................................................
.......................................................................................................................................................................................................................................................................................................................................................................................
| 型号：CL233A |
| 类别：电柜铰链系列 |
| 产品介绍： CL233A: 材质：A3钢 表面处理：镀彩锌 |
