CL230铰链 锌合金铰链，碳钢销子
| 产品型号（MODEL) | 特征描述（SPECIFICATION) | 产品单重（Weight/g) | 装箱数 (Lot) | ||||
| 门板厚度 Ts | A | B | |||||
| CL230-1 | 1.5 | 4.6 | 5 | 51 | 400 | ||
| CL230-2 | 2 | 5.1 | 15 | 51 | 400 | ||
| CL230-1A | 1.5 | 4.6 | 17 | 55 | 400 | ||
| CL230-2A | 2 | 5.1 | 17 | 55 | 400 | ||
| CL230-1B | 1.5 | 4.6 | 19 | 55 | 400 | ||
| CL230-2B | 2 | 5.1 | 19 | 55 | 400 | ||

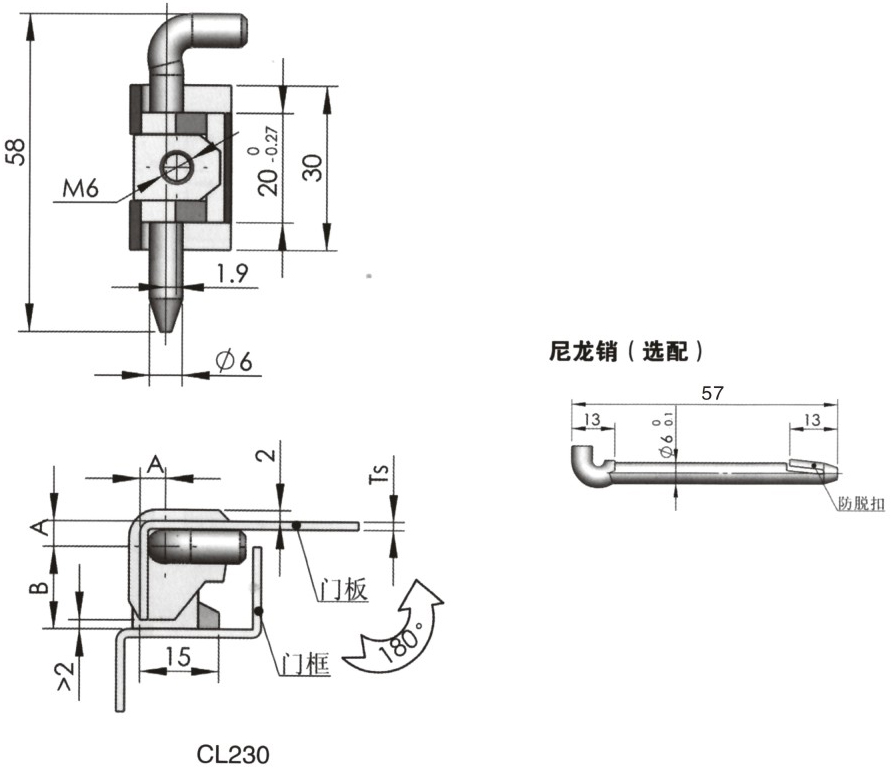

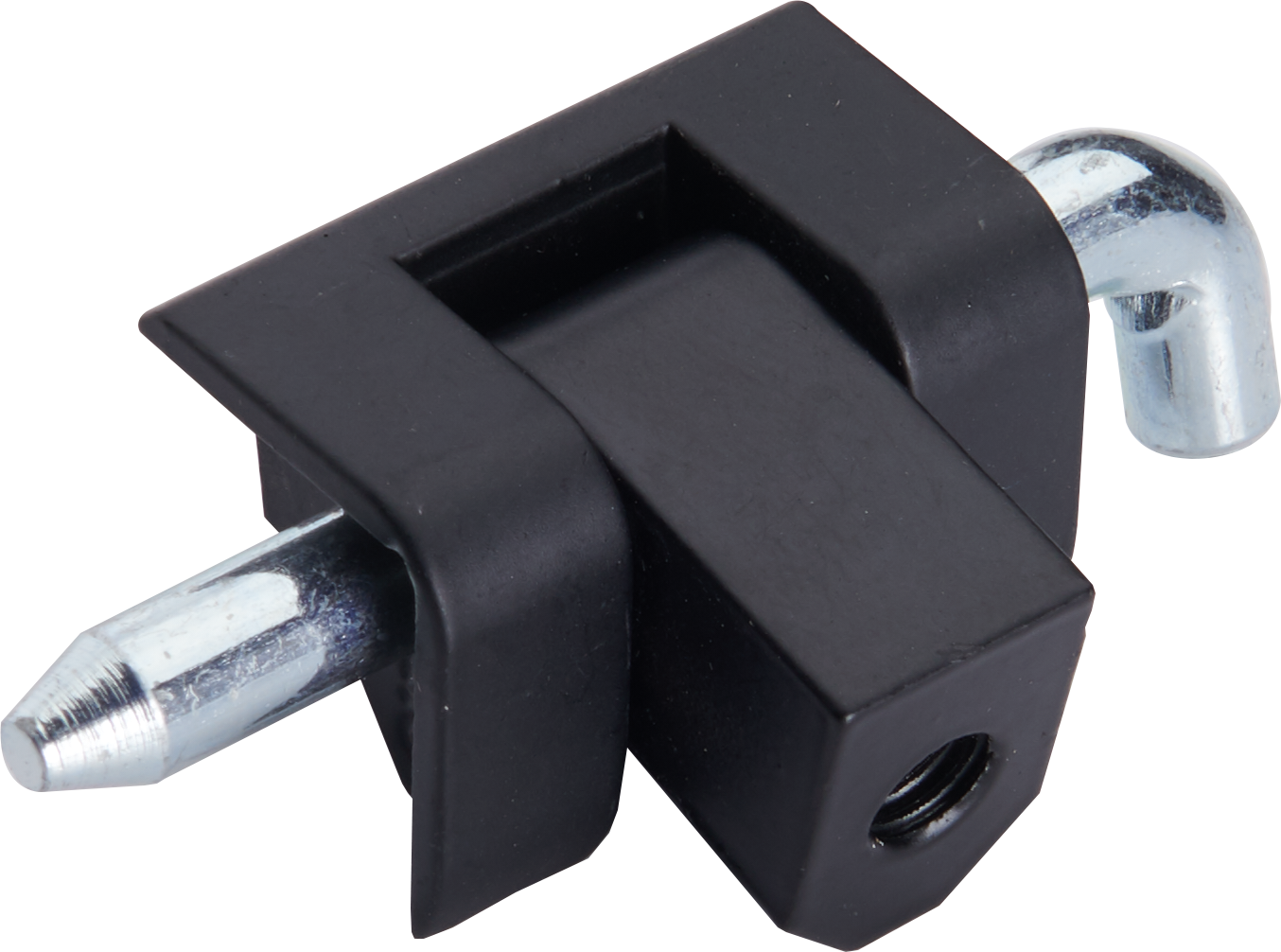

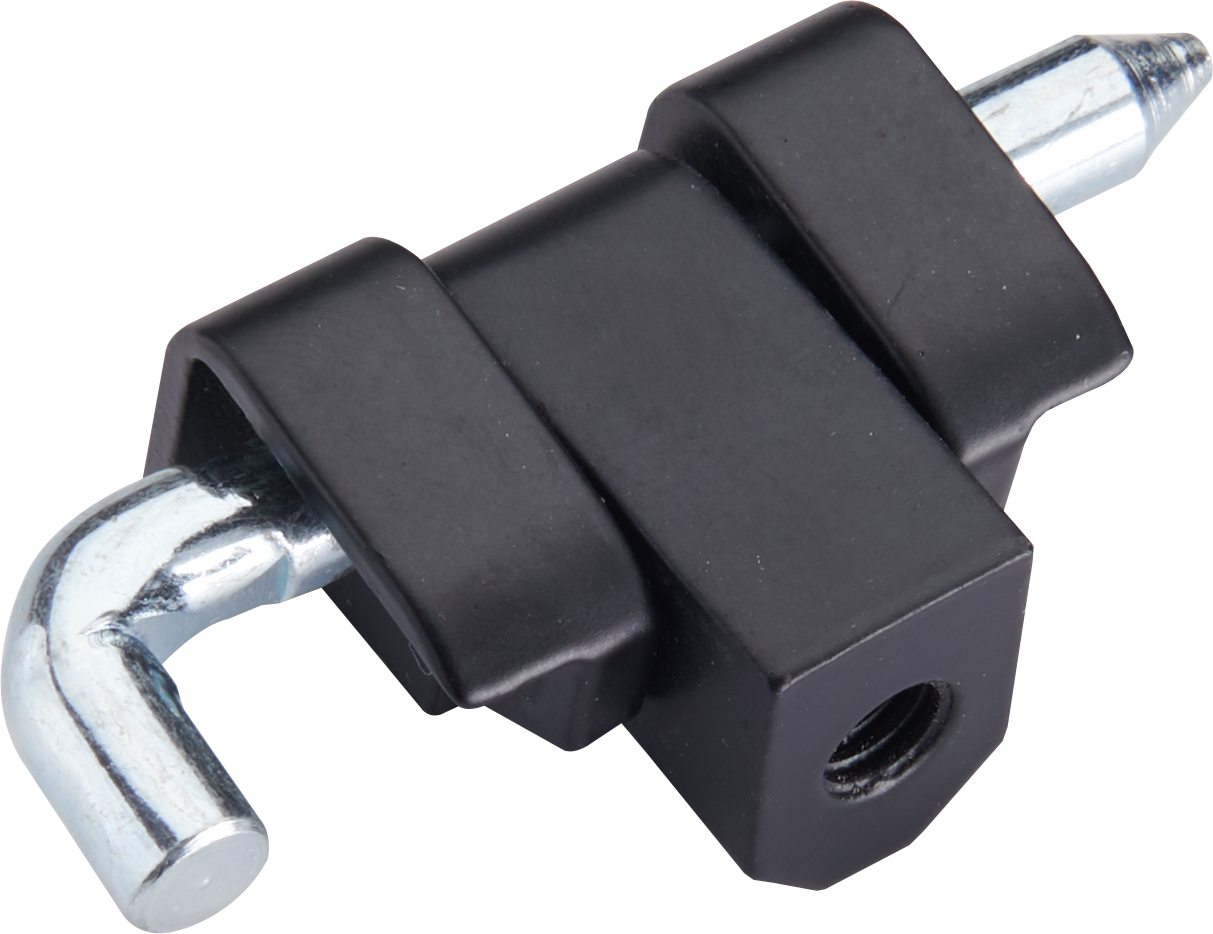

CL230
材质：锌合金铰链，碳钢销子
表面处理：喷塑黑色铰链
结构说明：可开启角度180°
性能参数：最 大 静载荷
径向载荷: 940N
轴向载荷:720N
Material: zinc alloy hinge, carbon steel pin
Surface treatment: spray black hinge
Structure description: Opening angle 180 °
Performance parameters: maximum static load
Radial load: 940N
Axial load: 720N
.......................................................................................................................................................................................................................................................................................................................................................................................
.......................................................................................................................................................................................................................................................................................................................................................................................
| 型号：CL233A |
| 类别：电柜铰链系列 |
| 产品介绍： CL233A: 材质：A3钢 表面处理：镀彩锌 |
