上海欧宝铰链 工业柜门铰链 锌合金合页铰链厂商 欧宝铰链 CL213-7铰链
| 产品型号（MODEL) | 特征描述（SPECIFICATION) | 产品单重 weight（g) | 装箱数 Lot | |||
| CL213-7 |
锌合金（喷塑黑） Zinc alloy (plastic spray black) | 324 | 80 | |||

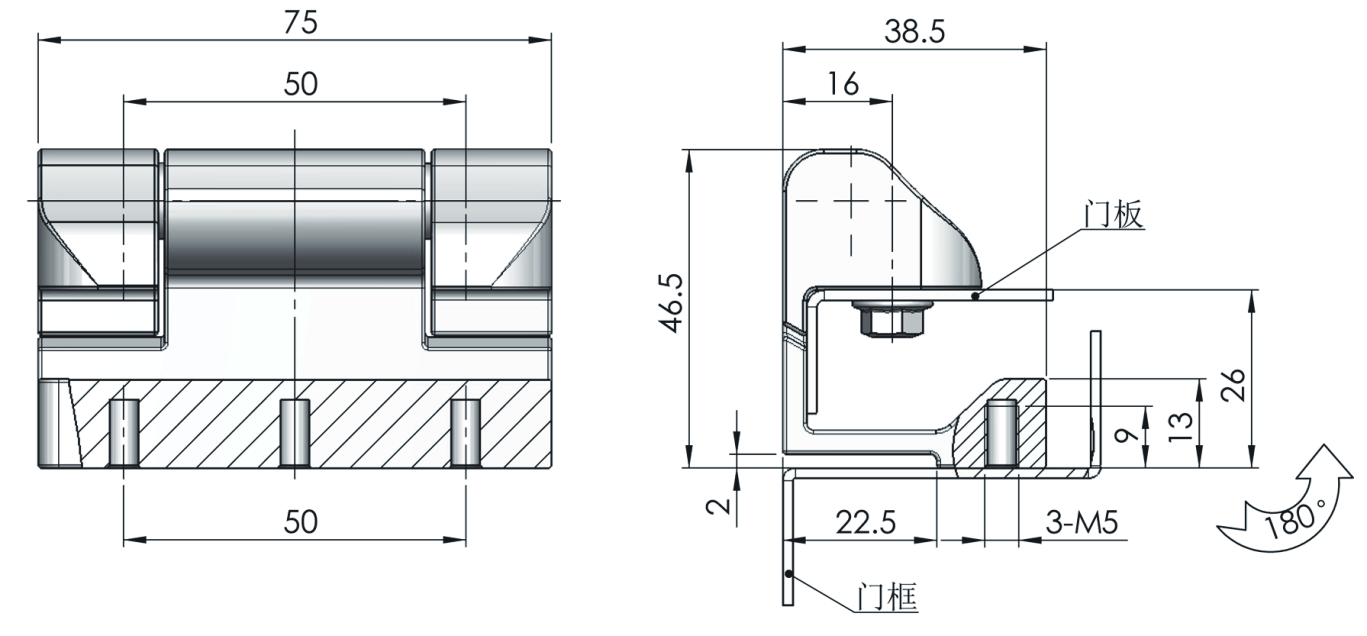

CL213-7
材质：锌合金
表面处理：喷塑
结构说明：可开启角度180度
铰链类型：卡式铰链
性能参数：最 大 静载荷
径向载荷:680N
轴向载荷: 1225N
Material: zinc alloy
Surface treatment: spray molding
Structure description: opening angle 180 degrees
Hinge type: card hinge
Performance parameters: maximum static load
Radial load: 680n
Axial load: 1225n
.......................................................................................................................................................................................................................................................................................................................................................................................
.......................................................................................................................................................................................................................................................................................................................................................................................

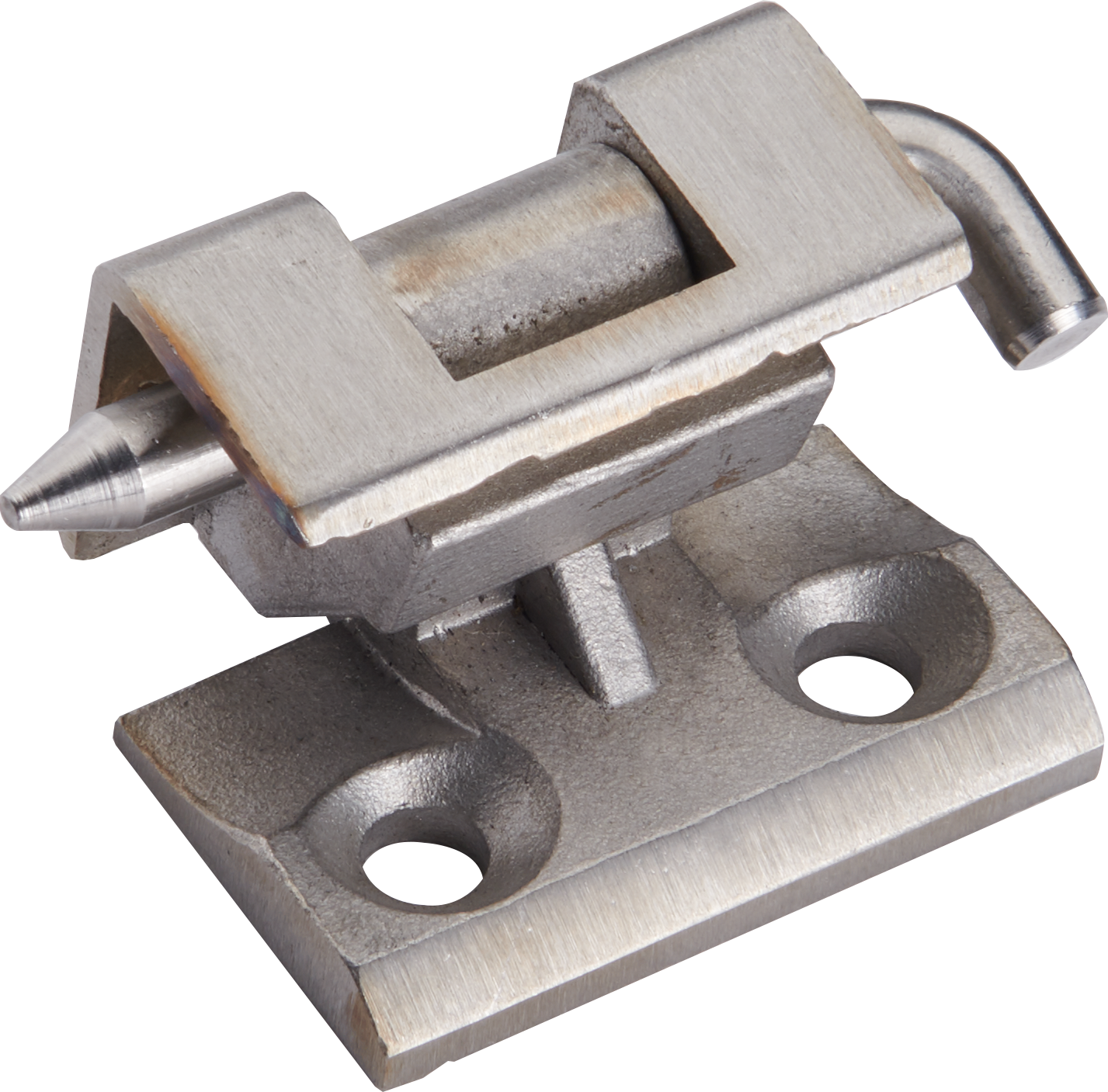

| 型号：CL233A |
| 类别：电柜铰链系列 |
| 产品介绍： CL233A: 材质：A3钢 表面处理：镀彩锌 |
