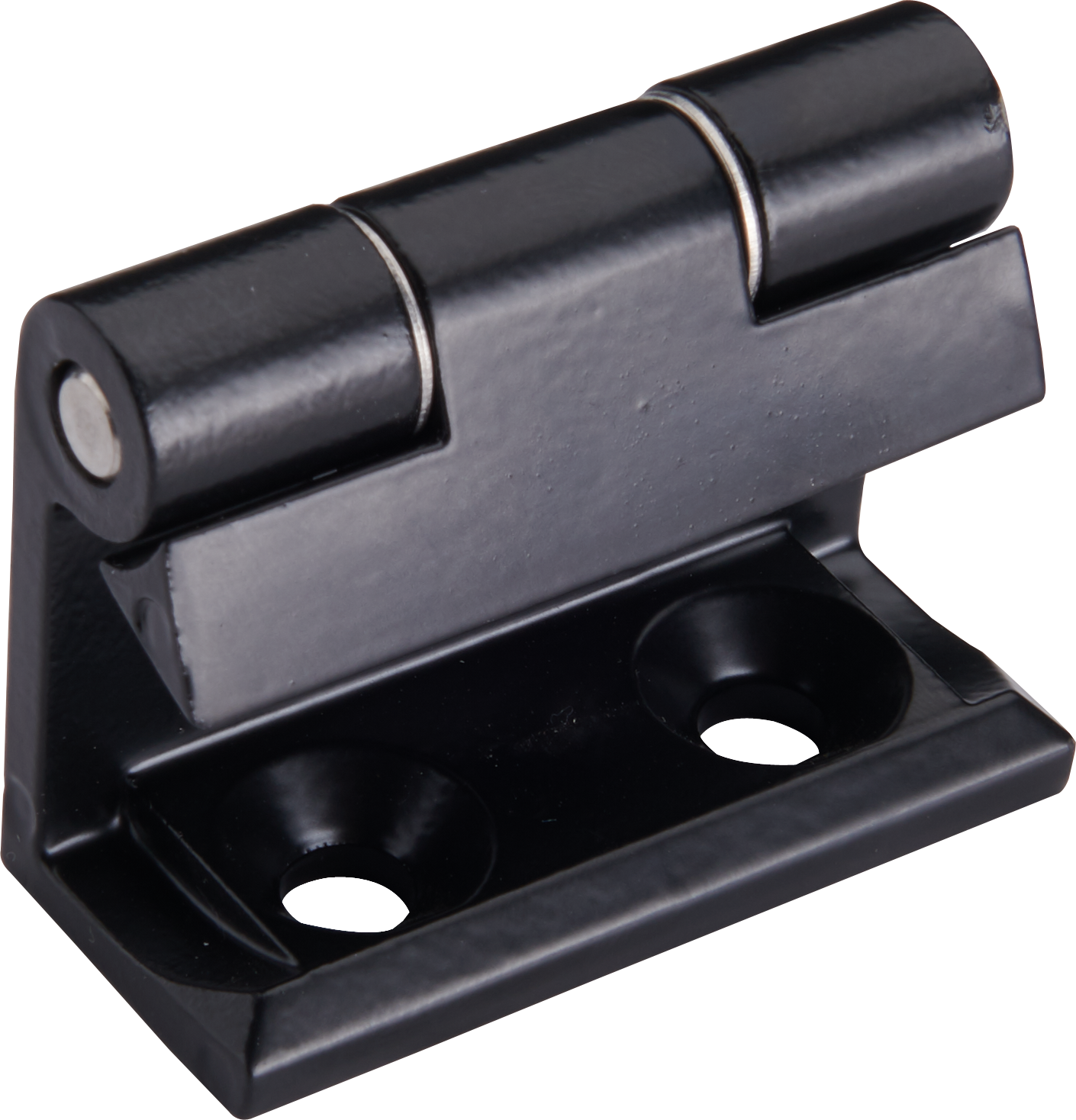

CL264铰链 锌合金铰链，不锈钢垫片，碳钢销子
| 产品型号（MODEL) | 特征描述（SPECIFICATION) | 产品单重 weight（g) | 装箱数 Lot | |||
| CL264 | 锌合金(Zinc alloy) | 138 | 120 | |||

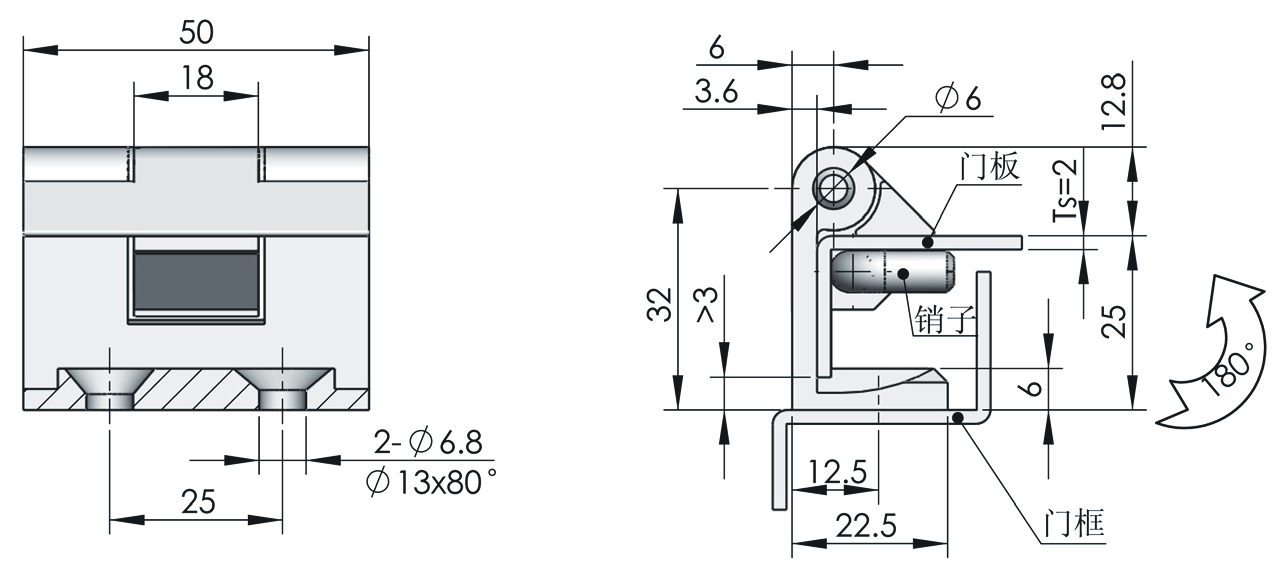

CL264
材质：锌合金铰链，不锈钢垫片，碳钢销子
表面处理：喷塑黑色铰链，镀镍销子
结构说明：可开启角度180度
性能参数：最 大 静载荷
径向载荷:1050N
轴向载荷:980N
Material: zinc alloy hinge, stainless steel gasket, carbon steel pin
Surface treatment: spray-painted black hinge, nickel-plated pins
Structure description: 180 degrees can be opened
Performance parameters: maximum static load
Radial load: 1050N
Axial load: 980N
.......................................................................................................................................................................................................................................................................................................................................................................................
.......................................................................................................................................................................................................................................................................................................................................................................................
| 型号：CL233A |
| 类别：电柜铰链系列 |
| 产品介绍： CL233A: 材质：A3钢 表面处理：镀彩锌 |
