CL233-5铰链 碳钢铰链 喷塑黑色铰链 脱卸式铰链
| 产品型号（MODEL) | 特征描述（SPECIFICATION) | 产品单重 weight（g) | 装箱数 Lot | |||
| CL233-5 | 碳钢Carbon steel | 262 | 80 | |||
| CL233-5B | 不锈钢stainless steel | 265 | 80 | |||

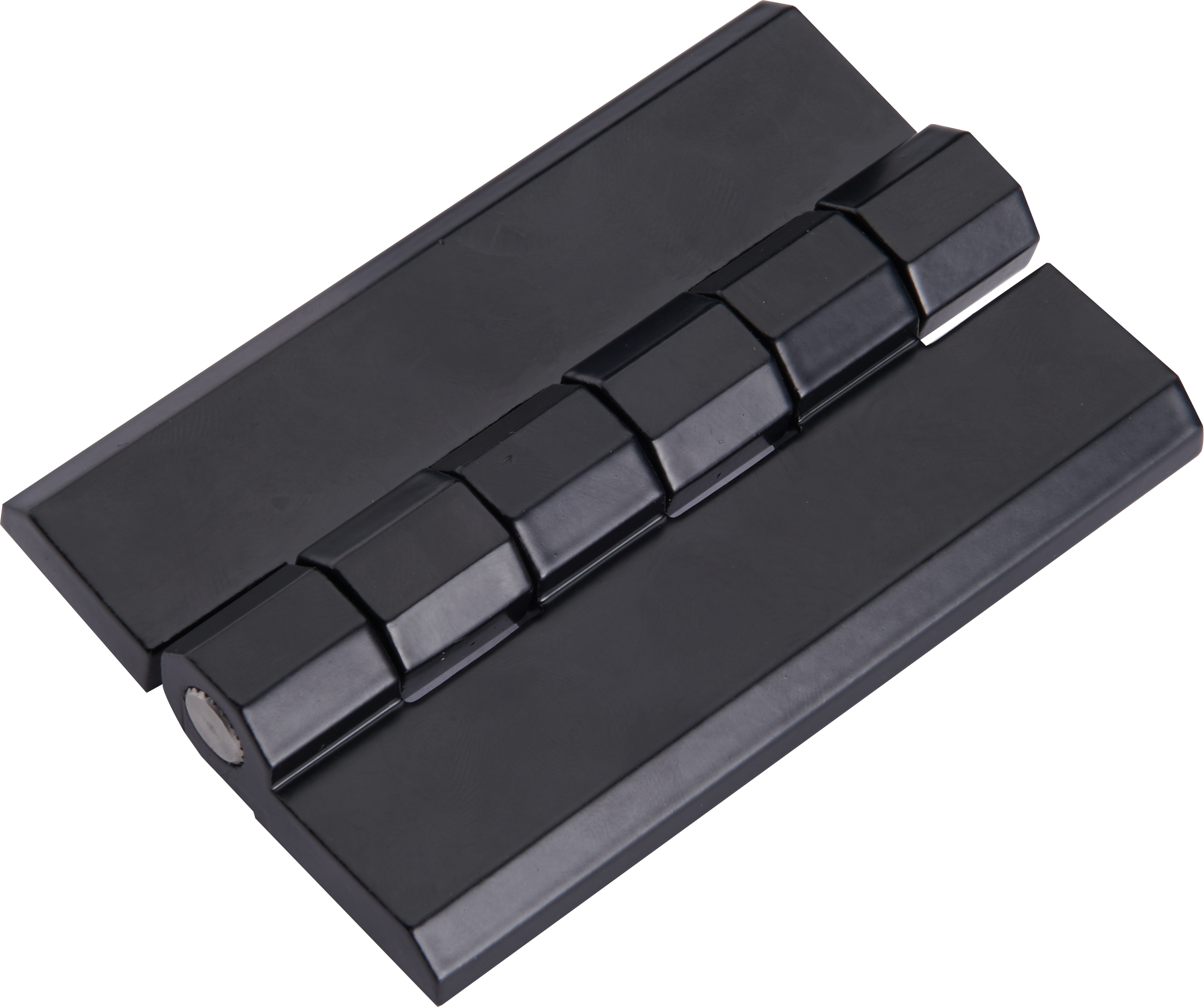

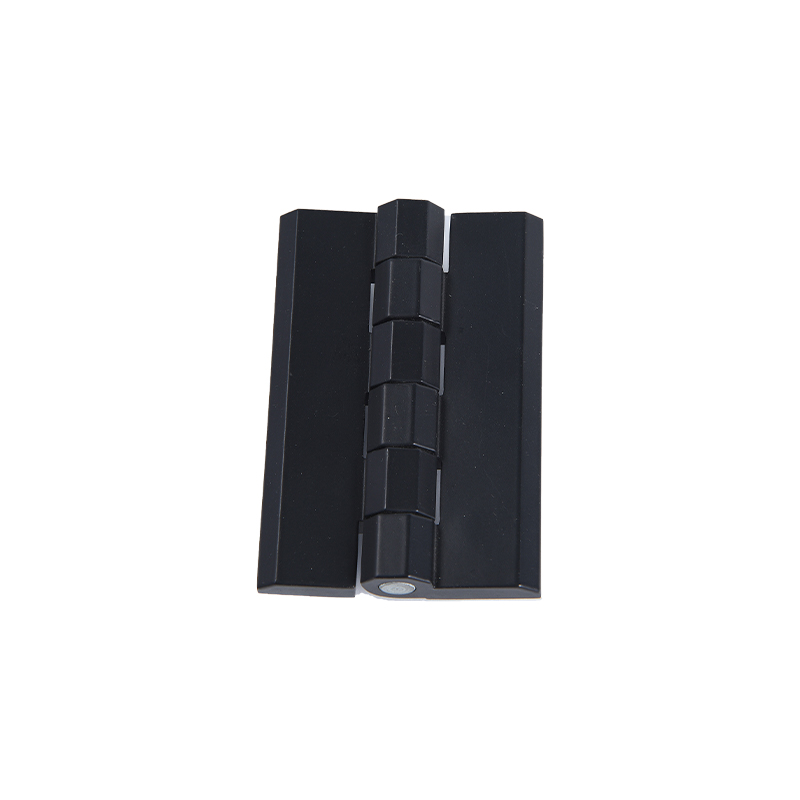

CL233-5
材质：碳钢铰链
表面处理：喷塑黑色
结构功能：脱卸式铰链.有左右门之分.开启角度180°
性能参数：最 大 静载荷
径向载荷: 800N
轴向载荷: 900N
Material: carbon steel hinge
Surface treatment: spray black
Structural function: detachable hinge. There are left and right doors. Opening angle 180 °
Performance parameters: maximum static load
Radial load: 800N
Axial load: 900N
<div class="widget-custom offerdetail_w1190_deion" data-widget-name="offerdetail_w1190_deion" style="outline:none;color:#222222;font-family:" font-size:12px;white-space:normal;background-color:#ffffff;"="">
.......................................................................................................................................................................................................................................................................................................................................................................................
.......................................................................................................................................................................................................................................................................................................................................................................................

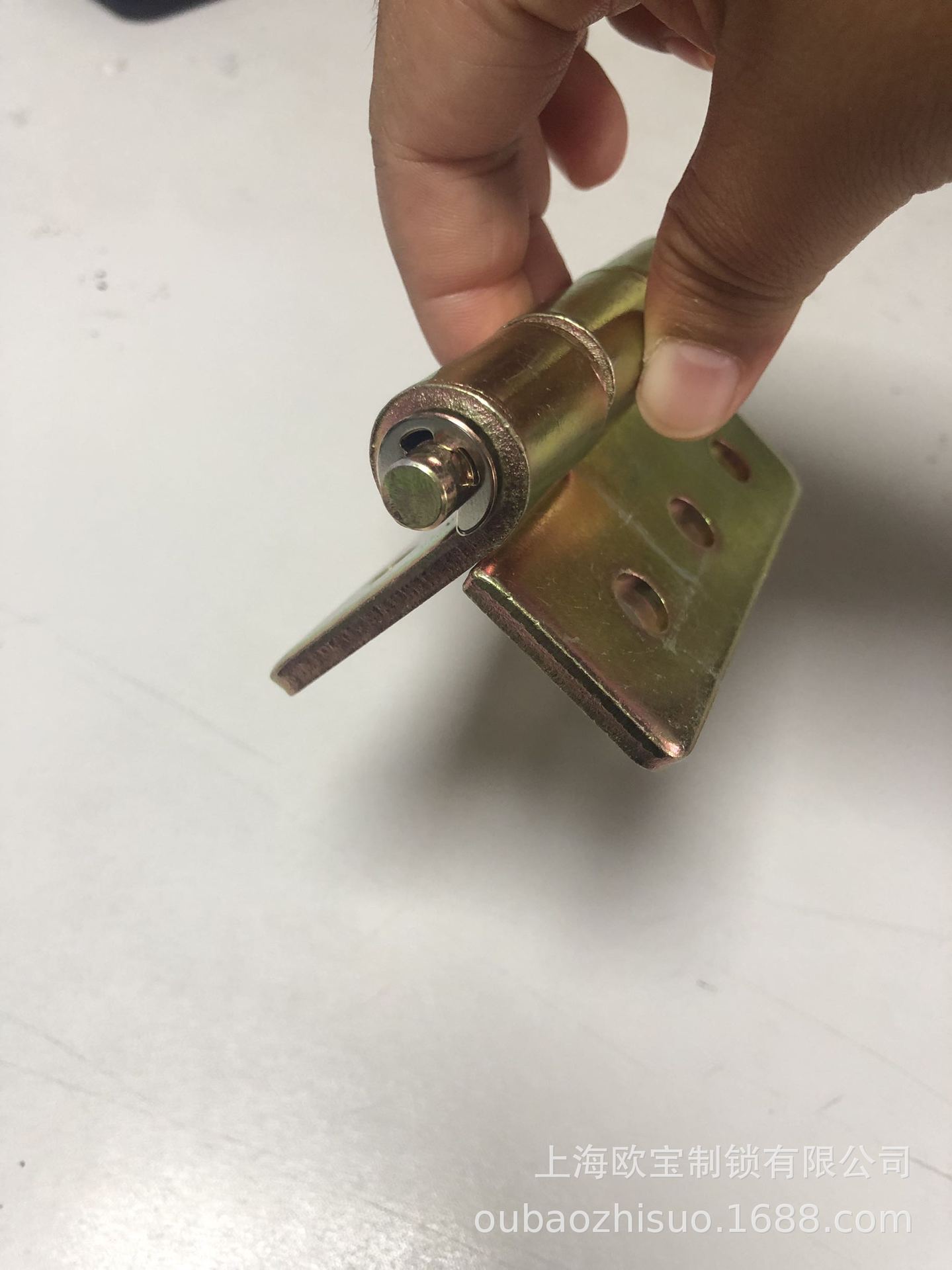

| 型号：CL233A |
| 类别：电柜铰链系列 |
| 产品介绍： CL233A: 材质：A3钢 表面处理：镀彩锌 |
