CL233-1AS铰链 上海欧宝制锁厂家 欧宝铰链厂商 不锈钢铰链、销子
| 产品型号 （MODEL) | 特征描述 （SPECIFICATION) | 产品单重（Weight/g) | 装箱数 (Lot) | |
| CL233-1AS | SUS304不锈钢 SUS304 Stainless steel | 239 | 80 | |

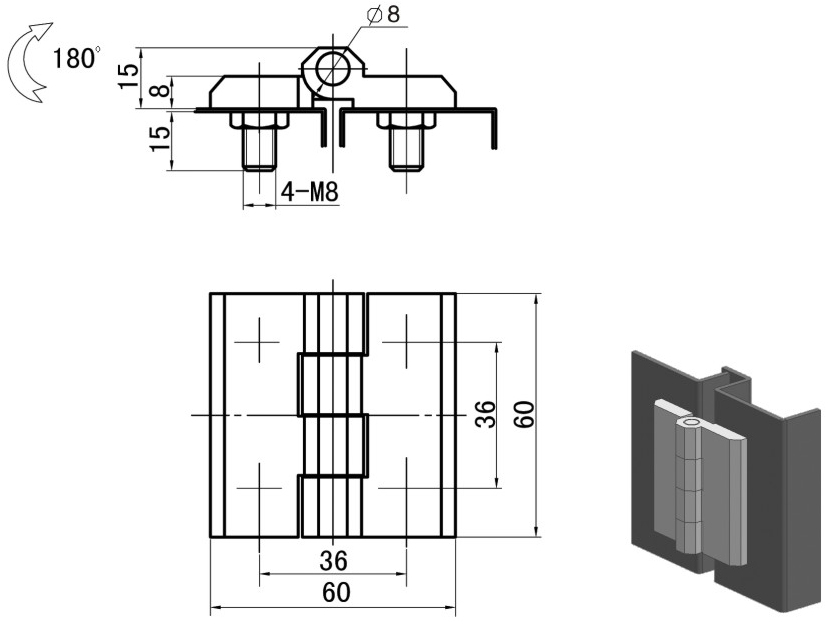

CL233-1AS
材质：不锈钢铰链、销子
表面处理：拉丝抛光
结构说明：可开启角度180°
性能参数：最 大 静载荷
径向载荷: 1500N
轴向载荷: 1800N
镶嵌螺钉推荐拧紧扭矩：10N.m
Material: stainless steel hinge, pin
Surface treatment: brushed and polished
Structure description: Opening angle 180 °
Performance parameters: maximum static load
Radial load: 1500N
Axial load: 1800N
Recommended tightening torque for mounting screws: 10N.m
.......................................................................................................................................................................................................................................................................................................................................................................................
.......................................................................................................................................................................................................................................................................................................................................................................................
| 型号：CL233A |
| 类别：电柜铰链系列 |
| 产品介绍： CL233A: 材质：A3钢 表面处理：镀彩锌 |
