上海欧宝电柜铰链 锌合金合页铰链 CL200-1铰链
| 产品型号（MODEL) | 特征描述（SPECIFICATION) | 产品单重 weight（g) | 装箱数 Lot | |||
| CL200-1 | 两端轴焊接 | 480 | 50 | |||
| CL200-1C | 两端轴卡圈 | 450 | 50 | |||

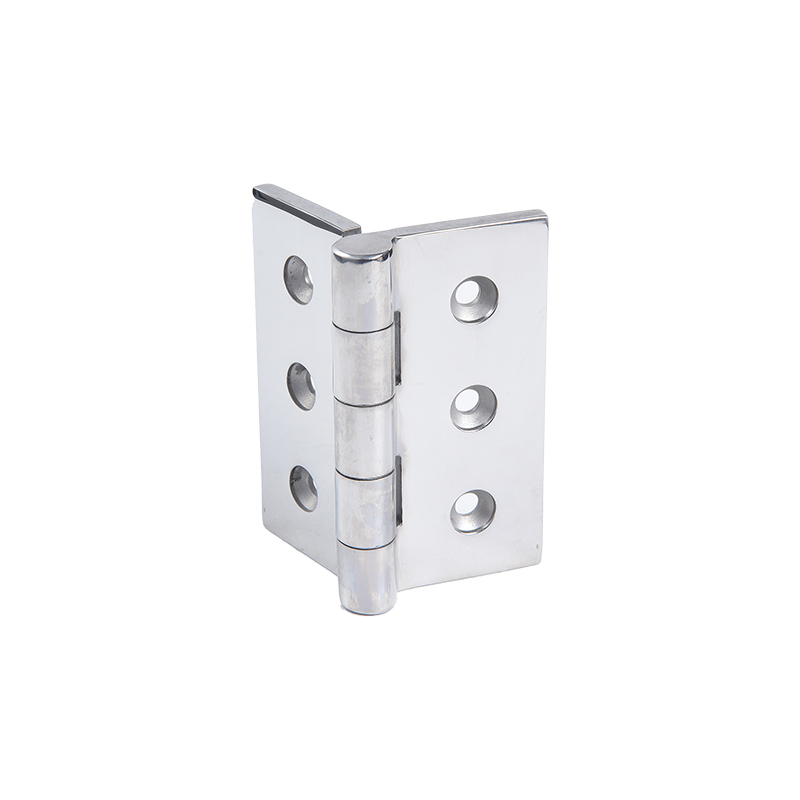

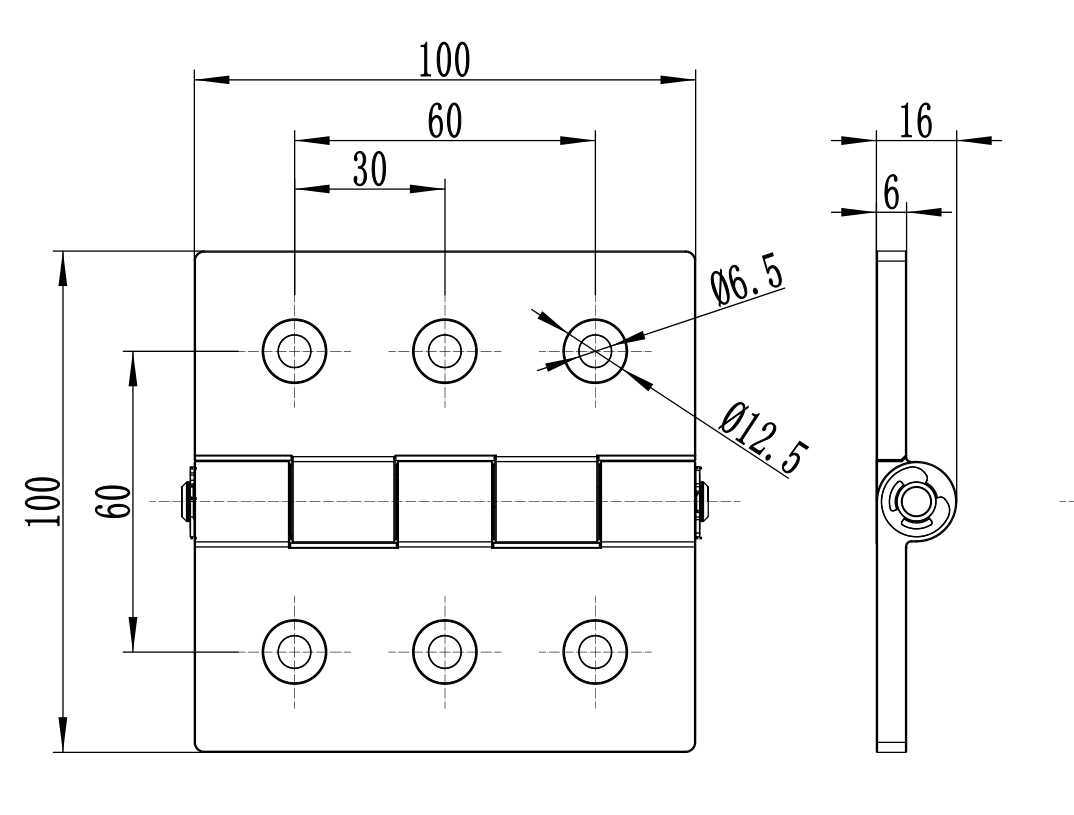

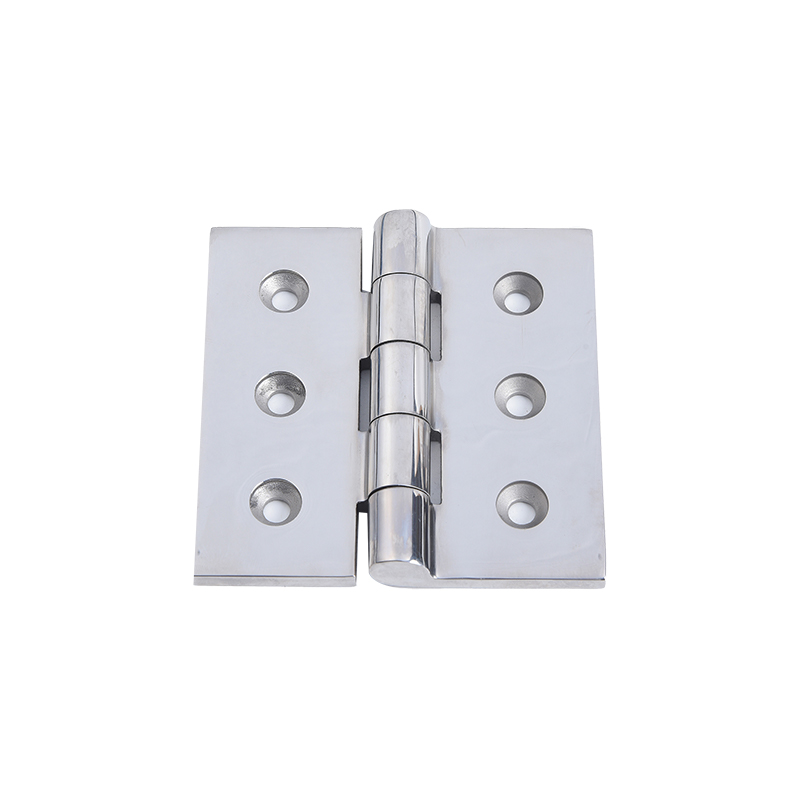

CL200-1
材质：全不锈钢
表面处理：镜面抛光
性能参数
径向载荷：1500N
轴向载荷：1700N
Material: All stainless steel
Surface treatment: mirror polishing
Performance parameter
Radial load: 1500N
Axial load: 1700N
.......................................................................................................................................................................................................................................................................................................................................................................................
.......................................................................................................................................................................................................................................................................................................................................................................................
| 型号：CL233A |
| 类别：电柜铰链系列 |
| 产品介绍： CL233A: 材质：A3钢 表面处理：镀彩锌 |
